Productivity3000®
Programmable Automation Controller - AC I/O
...
more cost effective than any control solution in the
market!
The Productivity3000
programmable automation controller (PAC) is a compact logic
controller that combines the features and capabilities of a
PC-based control system with that of a typical programmable
logic controller (PLC). The Productivity3000 PAC offers you a
more powerful control solution that is easier to use and more
cost effective than any control solution in the market.
- Modular,
Rack-based System
With 36 discrete
and analog I/O option modules, up to 115,000+ I/O
points
- Built-in
Local, Remote and Expansion I/O Capabilities
On the CPU module, no additional
master modules required
- Easy
Configuration with Module Plug and Play
Auto-discover local and remote bases, I/O and GS
drives
- Hot-swappable
I/O
Exchange modules or complete
remote bases without interrupting your process
- No Module
Placement Restrictions
Any module in
any slot, in any base
- No Power
Budget Limitations
No restrictions
means any module, any slot, any base (local, remote or
expansion) as many as you want
- Full
TWO-Year Warranty
And full-featured
FREE PAC programming software
AC
I/O
A variety of discrete AC I/O modules
are available for use in local, expansion, and remote I/O
bases. Isolated commons and I/O status indicators on each
module. A filler module is available for unused I/O module
slots (part number P3-FILL).

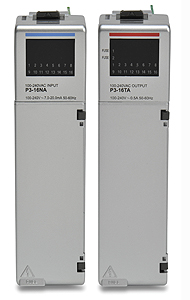

Productivity3000
AC Input Modules
| PART NO. |
DESCRIPTION |
PRICE |
INFO |
| P3-08NAS |
(8) isolated 100-240 VAC inputs |
$160.00 |
 |
| P3-16NA |
(16) 100-240 VAC inputs,
4 isolated
commons |
$200.00 |
|
Productivity3000
AC/Relay Output Modules
| PART NO. |
DESCRIPTION |
PRICE |
INFO |
| P3-08TAS |
(8) isolated 100-240 VAC outputs,
8
fused commons |
$225.00 |
|
| P3-16TA |
(16) 100-240 VAC outputs,
2 isolated,
fused commons |
$265.00 |
|
| P3-08TRS |
(8) isolated relay outputs, 2A each,
8 fused commons |
$160.00 |
|
| P3-16TR |
(16) relay outputs, 1.25A each,
2
isolated, fused commons |
$225.00 |
|
| P3-08TRS-1 |
(8) isolated relay outputs, 5A each,
8 fused commons |
$185.00 |
|
|
|
